Liquiphant FTL50 - Vibronic

Vibronic
Point level detection
Liquiphant FTL50

Compact vibration point level switch for liquids in all industries

FTL50
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

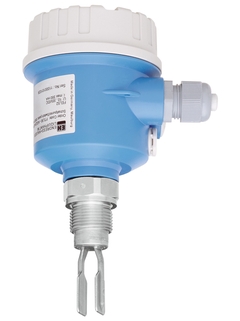

Liquiphant FTL50
  • F
  • L
  • E
  • X
©Endress+Hauser

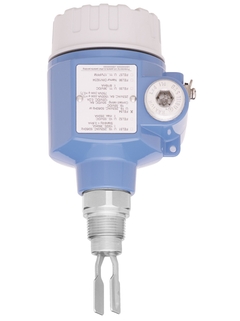

Liquiphant FTL50
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL50
  • F
  • L
  • E
  • X
©Endress+Hauser

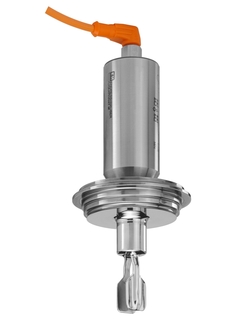

Liquiphant FTL50
  • F
  • L
  • E
  • X
©Endress+Hauser

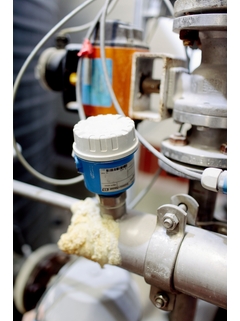

Liquiphant FTL50 application
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...64 bar
    (Vacuum...928 psi)

  • Min. density of medium

    0.5g/cm³(0.4g/cm³ option)

Field of application

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Point level switch for all liquids.

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

  • Temperature: -50 to +150°C (-58 to +302°F)

  • Pressure: -1 to +64bar (-14.5 to +928psi)

  • Sensor material: 316L, Alloy

  • International explosion protection certificates, overfill protection WHG, SIL, marine approvals

Benefits

  • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
    IEC 61508/IEC 61511-1

  • International explosion protection certificates and overfill protection certificate (WHG)

  • No calibration required, easy to start up

  • No mechanically moving parts: no maintenance, no wear, long operating life.
    Monitoring of fork for damage: guaranteed function

  • Second line of defense to protect the environment

  • Variety of standardized process connections for all applications

  • Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)

Videos

  • Vibronic measuring principle

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids
