Ceraliquid CPS42 - Analog ORP sensor with refillable liquid KCl electrolyte

Analog ORP sensor
Ceraliquid CPS42

Glass electrode for applications with fast-changing medium compositions or low conductivity

CPS42
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

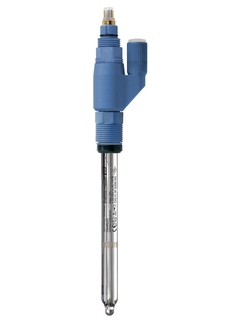

Ceraliquid CPS42 - Analog ORP sensor with refillable liquid KCl electrolyte ©Endress+Hauser

Specs at a glance

  • Measuring range

    -1500 mV - +1500 mV

  • Process temperature

    -15°C - 130°C

  • Process pressure

    max. 8bar

Field of application

Ceraliquid CPS42 is the analog high performer for harsh chemical applications and media with low conductivity or a considerable content of organic solvents. The sensor is designed for fast response guaranteeing you high process safety even in applications with fast-changing medium compositions.

Media with very low conductivities or a considerable amount of organic solvents or alcohols and fast changing media:

  • Chemical industry

  • Power plants, e.g. boiler feed water

  • Life sciences, e.g. water for injection

With ATEX, FM and CSA approval for use in hazardous areas.

Benefits

  • Resistant to poisoning due to constant refilling of KCl bridge electrolyte and separate reference lead

  • Applicable at very low conductivities (= 5 µS/cm) thanks to liquid KCl electrolyte

  • Suitable for cleaning in place (CIP) and sterilization in place (SIP)

  • Perfectly suited for quickly changing media: Combination of liquid KCl electrolyte and ceramic diaphragm enables fast response time
