Smartec CLD132 is an interference-free, easy-to-use conductivity measuring system.

Conductivity compact device
Smartec CLD132

Inductive conductivity measuring system for applications with fast temperature changes

CLD132
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

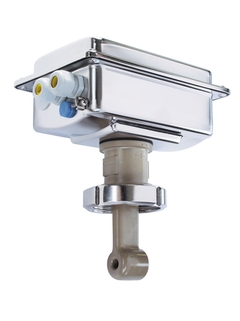

Conductivity compact device Smartec CLD132 ©Endress+Hauser

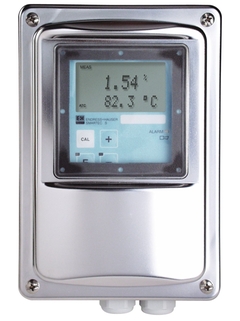

Conductivity compact device Smartec CLD132 ©Endress+Hauser

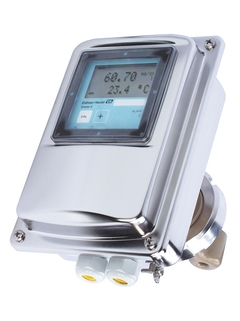

Conductivity compact device Smartec CLD132 ©Endress+Hauser

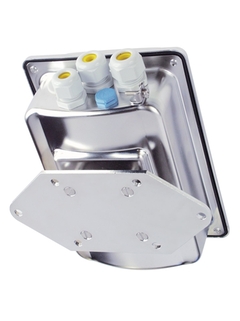

Conductivity compact device Smartec CLD132 ©Endress+Hauser

Specs at a glance

  • Measuring range

    100 µS/cm - 2000 mS/cm

  • Process temperature

    max. 140°C (max. 30 min.)
    284°F (max. 30 min.)

  • Process pressure

    max. 12 bar (90°C)
    (174 psi(194°F))

Field of application

Smartec CLD132 is a measuring system for inductive conductivity. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.

Smartec CLD132 is suited to applications such as:

  • Alkaline/acid concentration control in remaking

  • Phase separation of product/water and product/product mixtures in pipe systems

  • Product monitoring

Smartec CLD132 features the following protocols and interfaces:

  • 0/4...20mA

  • HART

  • PROFIBUS DP

  • PROFIBUS PA

Benefits

  • Engineered for quick temperature response

  • Low risk of soiling due to encapsulated sensor

  • Insensitive to polarization

Videos

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.
