Liquisys CLM223 is a compact panel transmitter for conductivity, resistivity and concentration.

Conductivity transmitter
Liquisys CLM223

Compact panel device for all industries

CLM223
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

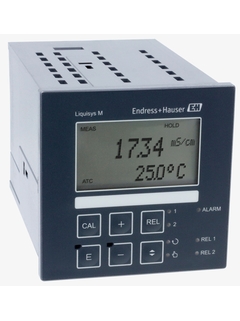

Conductivity transmitter Liquisys CLM223 ©Endress+Hauser

Specs at a glance

  • Input

    1-channel transmitter

  • Output / communication

    0/4-20 mA, Hart, Profibus.

  • Ingress protection

    IP54

Field of application

Liquisys CLM223 is a standard transmitter for all analog conductivity sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.

The Liquisys CLM223 transmitter works with all analog conductivity sensors in non-hazardous areas, for example in these industries and their utilities:

  • Chemicals

  • Food & Beverages

  • Life Sciences

  • Power &Energy

  • Water &Wastewater

  • Primaries & Metal

Liquisys CLM223 features the following protocols and interfaces:

  • 0/4...20 mA

  • HART

  • PROFIBUS DP

  • PROFIBUS PA

Benefits

  • More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.

  • Broad functionality: Conductivity, resistivity and concentration measurement, ultrapure water monitoring according to USP and EP.

  • Easy to operate and service: Intuitive user interface, easy calibration, direct access for manual contact control.

  • Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

  • Fit for every application: Numerous extensions, such as P(ID) controller, timer, etc., allow for flexible adaption to all processes.
