Specs at a glance
-
Accuracy
Standard 0.1%
Platinum 0.075% -
Process temperature
-20°C...130°C
(-4°F...266°F) -
Pressure measuring range
100 mbar...40 bar
(1.5psi...600psi) -
Process pressure / max. overpressure limit
60 bar (900 psi)
-
Main wetted parts
Ceraphire
Sealing
Alloy C276
316L -
Max. measurement distance
400 m (1312 ft) H2O
-
Material process membrane
Ceramic
-
Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
relative/ absolute
Field of application

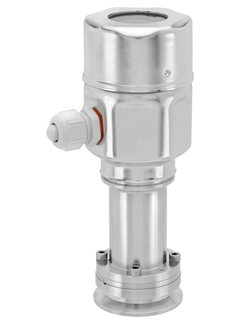

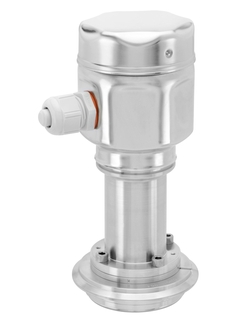

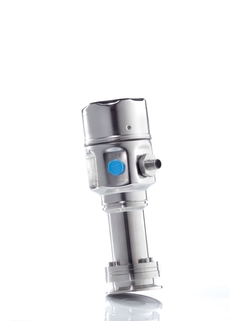

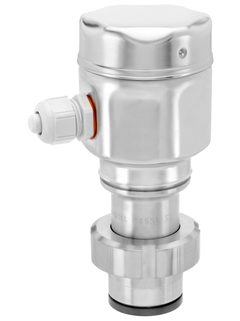

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
Accuracy: ±0.1%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals
Benefits
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
Condensation resistant also for hygienic applications
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

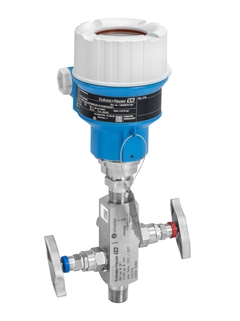

Available with mounted manifolds: always fit, always tested for leaks
Videos
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
English version - 12/2021
Process pressure measurement HART
EN 15/12/202110/12/201411/06/201425/01/201230/11/2010Language:
English
Version:
15/12/2021
File size:
858 KB
File name:
KA01030PEN_1821-00.pdf
-
-
-
Technical Information (TI)
TI Cerabar M PMC51, PMP51 , PMP55
English version - 04/2024
Process pressure measurement 4 to 20 mA, HART, IO-Link, PA, FF
EN 01/04/202422/08/202206/09/202101/04/202016/04/2019Language:
English
Version:
01/04/2024
File size:
3.8 MB
File name:
TI00436PEN_3224-00.pdf
-
169 documents
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 25/03/202415/09/202328/10/202130/07/202119/06/2020Language:
English
Version:
25/03/2024
File size:
1.1 MB
File name:
TI00426FEN_2524.pdf
-
-
-
Technical Information (TI)
TI Cerabar M PMC51, PMP51 , PMP55
Process pressure measurement
4 to 20 mA, HART, IO-Link, PA, FFEN 01/04/202422/08/202206/09/202101/04/202016/04/2019Language:
English
Version:
01/04/2024
File size:
3.8 MB
File name:
TI00436PEN_3224-00.pdf
-
-
-
Operating Instruction (BA)
Cerabar M PMC51, PMP51/55 Analog
With ceramic and silicon sensors
modular design and easy
operationEN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
1.1 MB
File name:
BA00385PEN_2016.pdf
-
-
-
Operating Instruction (BA)
Cerabar M /Deltabar M /Deltapilot M Operating Instructions PROFIBUS PA
Cerabar M PMC51, PMP51, PMP55, Pressure transmitter
Deltabar M
PMD55 Differential pressure transmitter Deltapilot M FMEN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
7.8 MB
File name:
BA00383PEN_0816.pdf
-
-
-
Operating Instruction (BA)
Cerabar M, Deltapilot M
Pressure / hydrostatics
IO-LinkEN 22/08/202231/07/2021Language:
English
Version:
22/08/2022
File size:
1.7 MB
File name:
BA02136PEN_0222-00.pdf
-
-
-
Operating Instruction (BA)
Cerabar M, Deltabar M, Deltapilot M HART (V 01.00.zz)
Cerabar M PMC51, PMP51/55 Pressure transmitter
Deltabar M
PMD55
Differential pressure transmitter
Deltapilot M FMB50/5EN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
4.8 MB
File name:
BA00382PEN_2016.pdf
-
-
-
Operating Instruction (BA)
Cerabar M / Deltabar M / Deltapilot M, Operating Instructions FOUNDATION Fieldbus
Cerabar M PMC51, PMP51, PMP55 Pressure transmitter
Deltabar M PMD55 Differential pressure transmitter
Deltapilot M FMB50 Hydrostatic pressure transmitterEN 13/07/201610/12/201411/06/201417/08/201225/01/2012Language:
English
Version:
13/07/2016
File size:
7.8 MB
File name:
BA00384PEN_0816.pdf
-
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
FOUNDATION FieldbusEN 30/09/202113/07/201610/12/201411/06/201425/01/2012Language:
English
Version:
30/09/2021
File size:
914.7 KB
File name:
KA01032PEN_0621-00.pdf
-
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
PROFIBUS PAEN 30/09/202113/07/201610/12/201411/06/201425/01/2012Language:
English
Version:
30/09/2021
File size:
943.6 KB
File name:
KA01031PEN_0621-00.pdf
-
-
-
Short Instruction (KA)
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
AnalogEN 15/12/202113/07/201610/12/201411/06/201425/01/2012Language:
English
Version:
15/12/2021
File size:
830.8 KB
File name:
KA01036PEN_1821-00.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Ground terminal T14/T15/T17, F30/F31
-
further parts
Order code71290825 -
-
Cable gland M20 PA, o-ring VMQ
-
Adapter housing/cable entry
Drawing numberOrder code1552002449 -
-
Cable gland M20 PA, O-ring EPDM/PTFE
-
Adapter housing/cable entry
Drawing numberOrder code1571092709 -
-
Cable gland M20 Metal, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1571092711 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
Drawing numberOrder code1571092712 -
-
Plug 3p M12/M20, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552005984 -
-
M12 plug, IO-Link, housing side
-
Adapter housing/cable entry
Drawing numberOrder code1571570154 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552020762 -
-
Plug valve, F30/F31, seal NBR
-
Adapter housing/cable entry
Drawing numberOrder code1571120017 -
-
Cover F15 316L, gasket
-
Cover
Drawing numberOrder code2052027000 -
-
Cover F15 316L, sight glass, gasket
-
Cover
Drawing numberOrder code2052027002 -
-
Cover F15, sight glass PC, 316L, gasket
-
Cover
Drawing numberOrder code2052028207 -
-
Cover F15 316L,claw,sight glass,gasket
-
Cover
Drawing numberOrder code2052028267 -
-
Cover F15 316L, claw, gasket
-
Cover
Drawing numberOrder code2052028268 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Drawing numberOrder code2152028179 -
-
Cover F30/31/34 Alu, gasket
-
Cover
Drawing numberOrder code2071092705 -
-
Cover F30/31 Alu, Ex d, gasket
-
Cover
Drawing numberOrder code2071092706 -
-
Cover F30/31/34 Alu, sight glass, gasket
-
Cover
Drawing numberOrder code2071092707 -
-
Cover F30/31 Alu,Exd,sight glass, gasket
-
Cover
Drawing numberOrder code2071092708 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
Drawing numberOrder code2152020429 -
-
Display module VU340, Cbar/Dbar/Dpilot M
-
Display
Drawing numberOrder code4071091670 -
-
Electronics FMB5x, PMC51, PMP5x, PMD55
-
Electronic
Drawing numberOrder code30XPP0001- -
-
Holder Display Dbar/Cbar/Dpilot M
-
Fixing
Drawing numberOrder code4171094113 -
-
Analog display VU340, Cbar, bracket
-
Display
Drawing numberOrder code4071111067 -
-
O-ring 26.7x1.78 HNBR 75, 3A, FDA, 5 pcs
-
Sealing
Drawing numberOrder code5752010155 -
-
O-ring 26.7x1.78 EPDM 70, 3A, USP, 5 pcs
-
Sealing
Drawing numberOrder code5752017989 -
-
O-ring 26.7x1.78 NBR 70, 5 pieces
-
Sealing
Drawing numberOrder code5752020769 -
-
O-ring 26.7x1.78 EPDM 70, 5 pieces
-
Sealing
Drawing numberOrder code5752020770 -
-
O-ring 26.7x1.78 FKM -40oC, 5 pieces
-
Sealing
Drawing numberOrder code5752020771 -
-
O-ring 26.7x1.78 FFKM 70 KALREZ, 1 pc.
-
Sealing
Drawing numberOrder code5752020772 -
-
O-ring 26.7x1.78 FKM, FDA, 5 pieces
-
Sealing
Drawing numberOrder code5771093308 -
-
O-ring 26.7x1.78 NBR, low temp., 5 pcs.
-
Sealing
Drawing numberOrder code5771114815 -
-
O-ring 26.7x1.78 silicone, FDA, 5 pcs.
-
Sealing
Drawing numberOrder code5771114816 -
-
O-ring 26.7x1.78 Fluoroprene, FDA, 1 pc.
-
Sealing
Drawing numberOrder code5771114817 -
-
O-ring 26.7x1.78 Kalrez 6221, FDA, 1 pc.
-
Sealing
Drawing numberOrder code5771114818 -
-
O-ring 26.7x1.78 Kalrez 6375, 1 pc.
-
Sealing
Drawing numberOrder code5771114820 -
-
O-ring 26.7x1.78 Kalrez 7075, 1 pc.
-
Sealing
Drawing numberOrder code5771114821 -
-
O-ring 27.1x1.6 FFKM 75 Perlast, 1pc.
-
Sealing
Drawing numberOrder code5771316464 -
-
Screw set, M5x16, 4 pieces
-
further parts
Order code71495134 -
-
Cable PE,80inch,sep. housing FMXXX/PMXXX
-
further parts
Order code71043886 -
-
Cable PE,200inch,sep.housing FMXXX/PMXXX
-
further parts
Order code71043888 -
-
Cable PE,400inch,sep.housing FMXXX/PMXXX
-
further parts
Order code71043889 -
-
Cable FEP,200inch,sep.housingFMXXX/PMXXX
-
further parts
Order code71070738 -
-
Profile gasket silicone, 5 pieces
-
further parts
Order code52023572 -
-
Profile gasket EPDM, 5 pieces
-
further parts
Order code71100719 -
-
EPDM O-ring+316L backring, EHEDG,1 piece
-
further parts
Order code71431380 -
-
EPDM O-ring, EHEDG, 5 pieces
-
further parts
Order code71545801 -
-
Flat seal 50x65x1 PTFE, FDA, 5 pieces
-
further parts
Order code52024228 -
-
Mountingset Cerabar,Deltapilot,Levelflex
Order code71102216 -
Mounting bracket 2 valve,stainless steel
Order code71372498 -
Adapter UNI, DIN11851 DN40, 316L
Order code71114172 -
Adapter UNI, DIN11851 DN50, 316L
Order code71114173 -
Adapter UNI, DRD DN50, 65mm, 316L
Order code71114174 -
Adapter UNI, Clamp 2", 316L
Order code71114176 -
Adapter Univ-/Variv N DN40-162 316L
Order code71114177 -
Adapter UNI, DIN11851 DN40, 316L, 3.1
Order code71114178 -
Adapter UNI, DIN11851 DN50, 316L, 3.1
Order code71114205 -
Adapter UNI, DRD DN50, 65mm, 316L, 3.1
Order code71114206 -
Adapter UNI, Clamp 2", 316L, 3.1
Order code71114207 -
Adapter Univ-/Variv N DN40 316L 3.1
Order code71114208 -
Weld-in adapter G1-1/2, 316L
Order code52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Order code52024470 -
Weld-in adapter UNI D65, 316L
Order code214880-0002 -
Weld-in adapter UNI D65, 316L, 3.1
Order code52010174 -
Weld-in adapter UNI D85, 316L
Order code52006262 -
Weld-in adapter UNI D85, 316L, 3.1
Order code52010173 -
Weld-in adapter UNI 6" D85, 316L
Order code71114160 -
Weld-in adapter UNI 6" D85, 316L 3.1
Order code71114171 -
Blind plug weld-in adapter UNI D65/85
Order code71580894 -
Weld-in adapter DRD DN50, 316L
Order code52002041 -
Weld-in adapter DRD DN50, 316L, 3.1
Order code52011899 -
Weld-in dummy, adapter G1-1/2
Order code52024471 -
Weld-in dummy, flange DRD DN50, 65mm
Order code71114209 -
Adapter Uni, Clamp 3", 316L, 3.1
Order code71350314 -
Adapter Uni, Clamp 3", 316L
Order code71350315 -
Weld-in dummy, adapter UNI 6" D65
Order code71114211 -
Weld-in dummy, adapter UNI D65/D85
Order code71114210
2 products & bundles
2 products
Often bought together
Accessories
- Mountingset Cerabar,Deltapilot,Levelflex
- Mounting bracket 2 valve,stainless steel
Related products
