Metric RTD/TC direct contact thermometer for a wide range of industrial applications
-
Fundamental metric RTD/TC direct contact thermometer for a wide range of industrial applications
-
Simple products
-
Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
-
Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
High-end products
-
Highly functional and convenient
Technical excellence
Simplicity
-
Specialized products
-
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections |
Technical excellence |
Simplicity |
Fundamental selection
Meet your basic measurement needs
|
Technical excellence
|
Simplicity
|
Lean selection
Handle your core processes easily
|
Technical excellence
|
Simplicity
|
Extended selection
Optimize your processes with innovative technologies
|
Technical excellence
|
Simplicity
|
Xpert selection
Master your most challenging applications
|
Technical excellence
|
Simplicity
|
-
Characteristic / Application
S.A. Style
universal range of application
usable with or without a thermowell
-
Thermowell / protection tube
to use with or without thermowell (can be ordered separately)
-
Insert / probe
mineral insulated (MI), flexible
-
Max. immersion length on request
-
Material protection tube/ thermowell
-
-
Process connection
Fixed thread:
NPT 1/4"
NPT 1/2"
G1/4"
G1/2"
Adjustable compression fitting:
NPT 1/8"
NPT 1/4"
NPT 3/8"
NPT 1/2"
G1/8"
G1/4"
G3/8"
G1/2"
-
-
Operating temperature range
PT 100:
-200 ...600 °C
(-328 ...1.112 °F)
-
Max. process pressure (static)
at 20 °C: 10 bar (150 psi) without thermowell
-
Accuracy
class A according to IEC 60751
Band 5 (1/10 DIN)
-
Response time
depending on configuration
-
Integration head transmitter
yes (4 ... 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
Certification
EN10204 3.1 Material traceability
1 documents
-
Technical Information

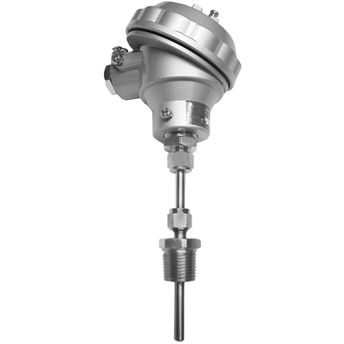

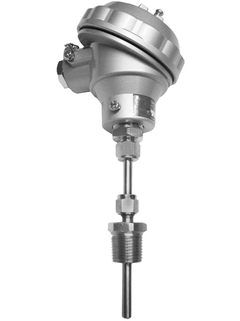

TLSR1 RTD measuring sensor, South African style
Fixed insert, adjustable or fixed fitting
Assembly with threaded process connection and terminal head
|
EN
|
|
|
08/07/2014
|
|
|
|
23/11/2012
|
|
|
|
20/06/2011
|
|
|
|
Language:
|
English
|
Version:
|
08/07/2014
|
File size:
|
711.3 KB
|
File name:
|
TI00158ren_0314.pdf
|
Search spare parts by number in drawing
12 spare parts & accessories
12 spare parts
12 accessories
-
Fixing kit cpl.TMT82/85/84 (european)
-
iTEMP TMT180, Head Transmitter Pt100
-
iTEMP TMT181, Head Transmitter PCP
-
iTEMP TMT84, Transmitter PA
-
iTEMP TMT85, Transmitter FF
-
Display for head transmitter TID10
Drawing number
Order code
B
TID10-
-
iTEMP TMT182, Head Transmitter HART
-
iTEMP TMT82, Transmitter HART
-
-
Readwin 2000 Operation + Read. software
-
-
Spare part set for TMT181/187/188/182
