Specs at a glance
-
Accuracy
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class standard acc. to ASTM E230
Class 2 acc. to IEC 60584-2 -
Response time
t90 around 100 s
depending on configuration -
Max. process pressure (static)
depending on the configuration
-
Operating temperature range
Basic PT100 TF:
-50 °C …200 °C
(-58 °F …392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F) -
Max. immersion length on request
up to 1.000,0 mm (39'')
Field of application

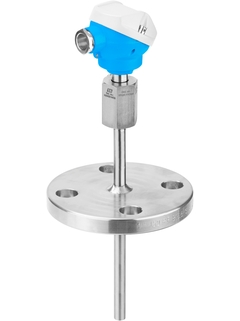

RTD or TC assembly characterized by basic sensor technology, application in non-hazardous areas, standard extension neck, low-cost unit. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.
Universal range of application
Application in non-hazardous areas
Measuring range: –50 to +650 °C (–58 to +1202 °F)
Pressure range up to 50 bar (725 psi)
Degree of protection: up to IP 68
Benefits
Economical, reliable measurement
User-friendly from product selection to maintenance
-
Wide range of process connections
Easy and safe device setup and service using Bluetooth® communication
Fundamental selection
-
Simple products
- Easy to select, install and operate
Technical excellence
Simplicity

-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Predecessor
-
-
Technical Information (TI)
TI iTHERM ModuLine TM121
Thermometer with RTD or TC insert complete with thermowell manufactured
from pipe or tube materialEN 31/03/202415/06/202231/03/202115/04/2019Language:
English
Version:
31/03/2024
File size:
2 MB
File name:
TI01455TEN_0424-00.pdf
-
-
-
Operating Instruction (BA)
BA iTHERM ModuLine thermometer
Universal, modular RTD/TC thermometers for a wide range of industrial applications
EN 30/11/202431/08/2018Language:
English
Version:
30/11/2024
File size:
801.5 KB
File name:
BA01915TEN_0224-00.pdf
-
-
-
Ex Safety Instruction (XA)
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412
Thermometers and inserts
Ex nA IIC T6...T1 GcEN 31/07/2020Language:
English
Version:
31/07/2020
File size:
173.5 KB
File name:
XA02111TEN_0120.pdf
-
-
-
Special Documentation (SD)
SD IEC 61406-1
Automatic identification of physical objects
EN 10/05/202303/12/202101/11/2021Language:
English
Version:
10/05/2023
File size:
649 KB
File name:
SD02817TEN_0323-00.pdf
-
-
-
Special Documentation (SD)
Device viewer
Technical documentation in other languages
Language:
English
Version:
14/07/2021
File size:
478.5 KB
File name:
SD02429R09EN_0121.pdf
-
-
-
Innovation (IN)
Komplexität reduzieren, Einfachheit erreichen.
iTHERM ModuLine – einfach konfigurierbar für Ihre Bedürfnisse.
Language:
German
Version:
25/02/2025
File size:
2 MB
File name:
IN01360T09DE.pdf
-
-
-
Innovation (IN)
Reduce complexity, achieve simplicity.
iTHERM ModuLine — easily configurable
to your needs.Language:
English
Version:
17/12/2024
File size:
2 MB
File name:
IN01360T09EN.pdf
-
-
-
Manufacturer Declaration
Product family: Process RTD general purpose
Product root: TM121-
Declaration number: HE_01246_01.20
Manufacturer specification: RoHS
Additional information: China RoHSLanguage:
Chinese
Version:
06/03/2020
File size:
324.8 KB
File name:
HE_01246_01.20 China RoHS TM121.pdf
-
-
-
Manufacturer Declaration
Product family: Controller, Process RTD general purpose, Process RTD heavy duty, Process RTD hygienic, RTD thermometer
Product root: FML621-, TM101-, TM111-, TM121-, TM151-, TM311-, TM401-, TMR31-, TMR35-, TR15-, TR65-, TR66-, TTR31-, TTR35-
Declaration number: ЕАЭС KZ 7500533.13.12.04163
Manufacturer specification: EMCLanguage:
Russian
Version:
28/08/2024
File size:
1.2 MB
File name:
EACKZ7500533131204163.pdf
-
-
-
Manufacturer Declaration
Product family: Process RTD general purpose
Product root: TM101-, TM111-, TM112-, TM121-, TM131-, TM151-, TM152-
Declaration number: TM1X1 SUPPLIERS DOC
Manufacturer specification: RoHS, Explosion protection, EMC
Additional information: ACMA, AustraliaLanguage:
English
Version:
12/04/2024
File size:
149.4 KB
File name:
TM1x1 Suppliers Dec of Conformity_240412.pdf
-
