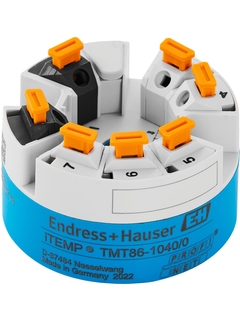

iTEMP TMT86 head temperature transmitter with Ethernet APL

iTEMP TMT86 temperature transmitter

PROFINET® temperature transmitter as head or field device with two universal sensor inputs suitable for use in hazardous areas with Ethernet-APL™

TMT86
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

This product is not available in this market.

*Please contact your Endress+Hauser sales partner for any further questions.

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K
    (Pt100, -58...392 °F) <= 0,18 °F

Field of application

The iTEMP TMT86 is a reliable, intelligent and future proof dual-channel Ethernet-APL PROFINET temperature head transmitter for thermometers with terminal head form B and is suitable for use in hazardous areas. ​Beneficial diagnostic functions like corrosion monitoring of the sensor wires help to improve the plant up-time. The embedded webserver and the up-to-date FDI package simplifies the device configuration and integration.

  • Ethernet-APL: 2-wire Ethernet IEEE 802.3cg 10BASE-T1L

  • Temperature measurement with two independent universal inputs (RTD, Ω, TC, mV)

  • System integration with PROFINET®

  • Installation in terminal head form B (flat face) as per DIN EN 50446

  • Optional: installation in field housing for Ex d applications

  • Reliability, long-term stability, high precision and advanced diagnostic function in critical processes

Benefits

  • Digital communication down to the field level, even in explosive atmospheres

  • Easy and standardized system integration via PROFINET® Profile 4

  • Integrated web server offers simplicity during commissioning and maintenance

  • High accuracy of measuring point through sensor-transmitter matching

  • Reliable operation with sensor monitoring and device hardware fault recognition

  • Fast and tool-free wiring thanks to push-in terminal technology, optional

  • Attachable measured value display, optional
